Computer Applications (WIP)

Project 1A and 1B (Revit Modelling and Documentation)

Creating a door family - Pivot Swinging Door

Family a1

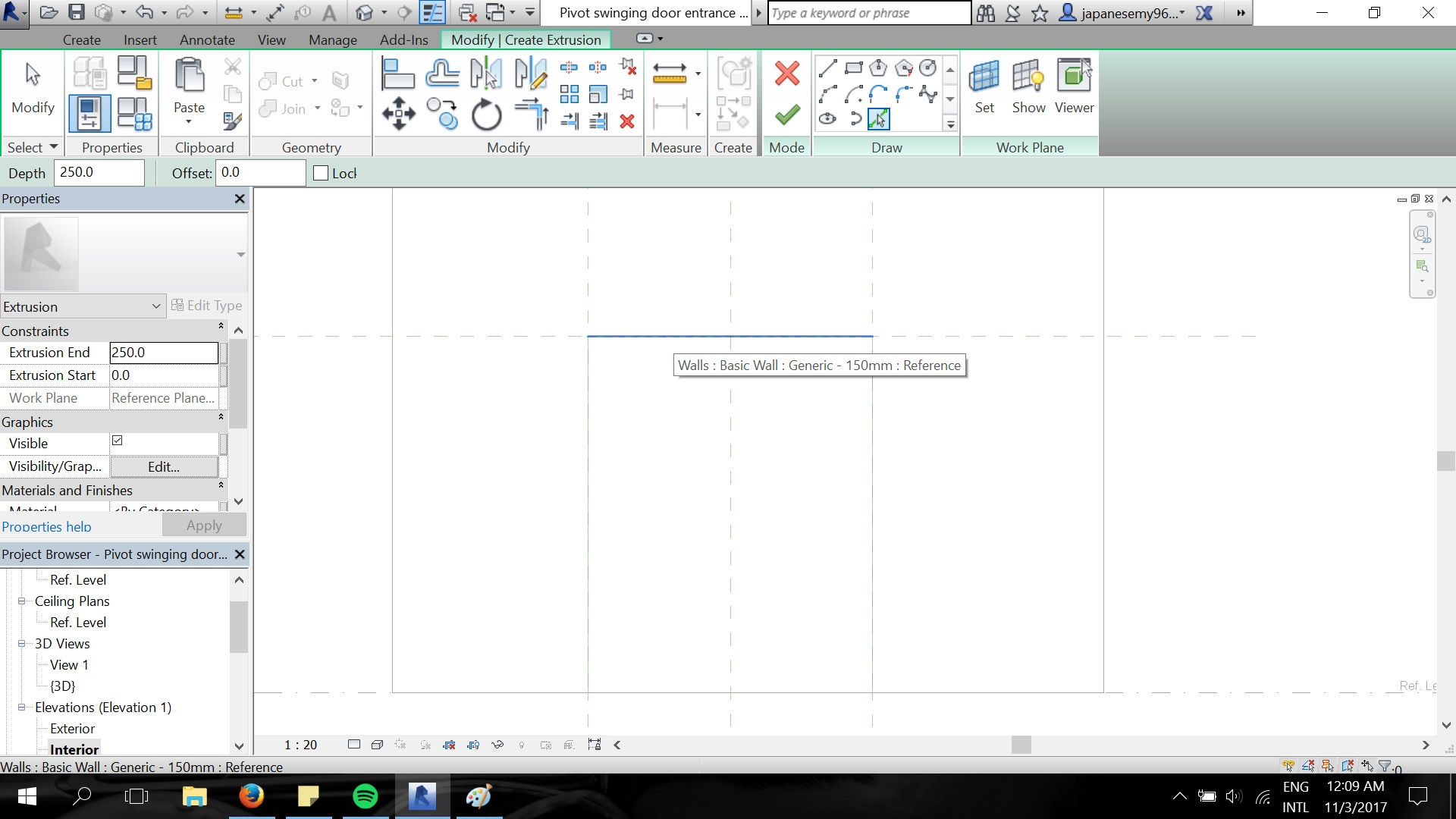

Family a2

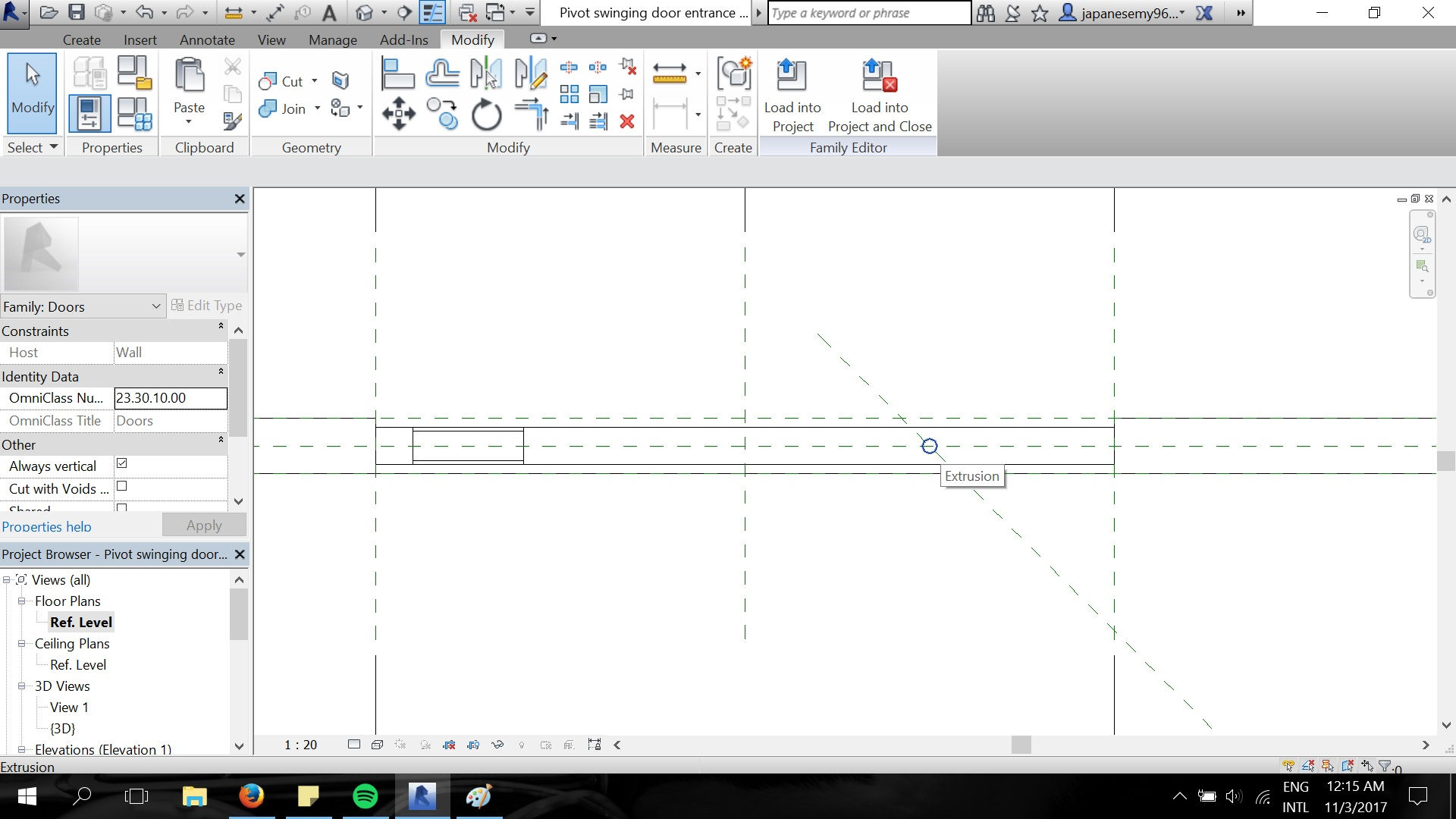

Family a3

Family a4

Family a5

Family a7

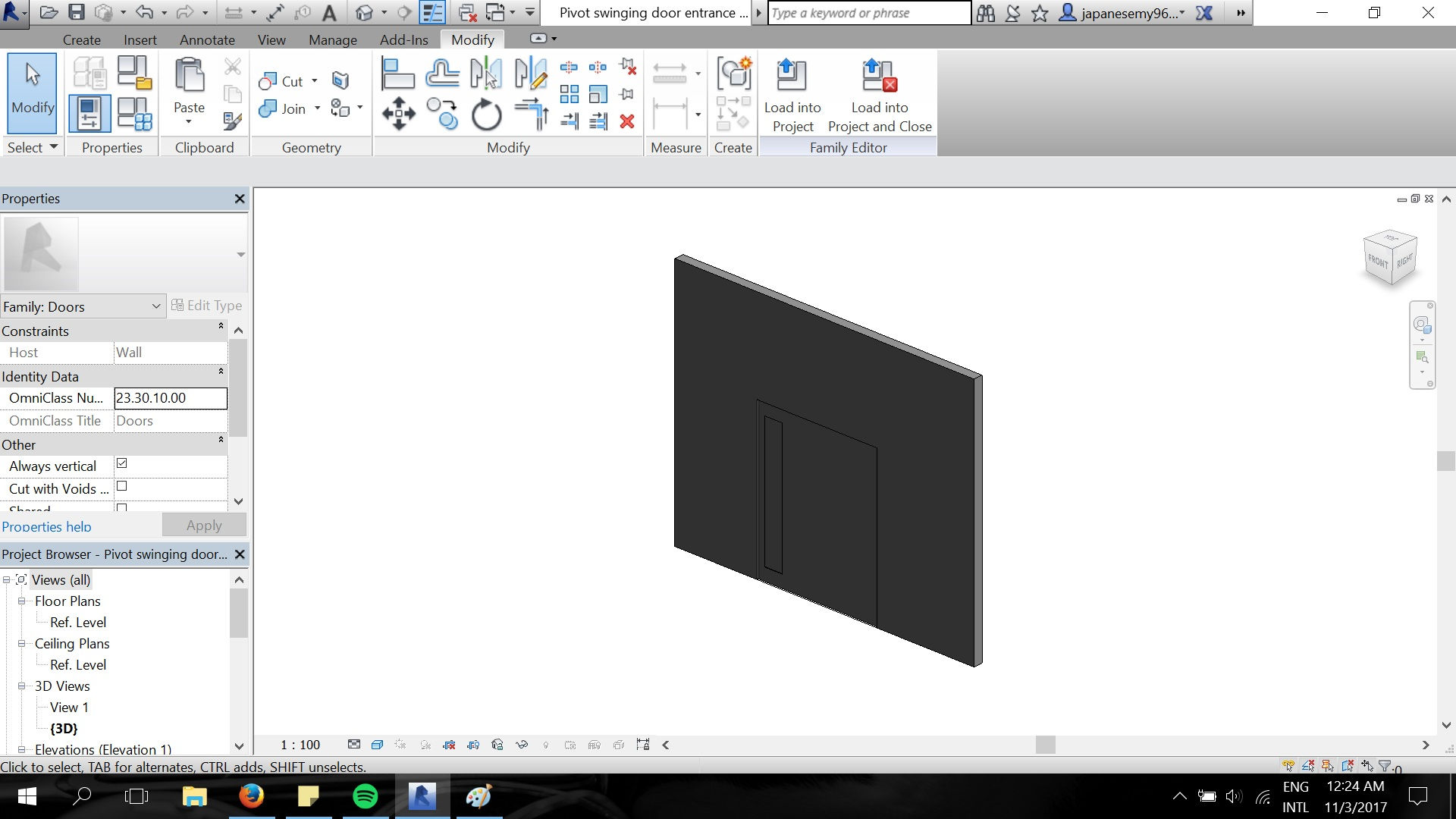

Family a6

Create a window family - Window for kitchen

Family b1

Family b2

Family b3

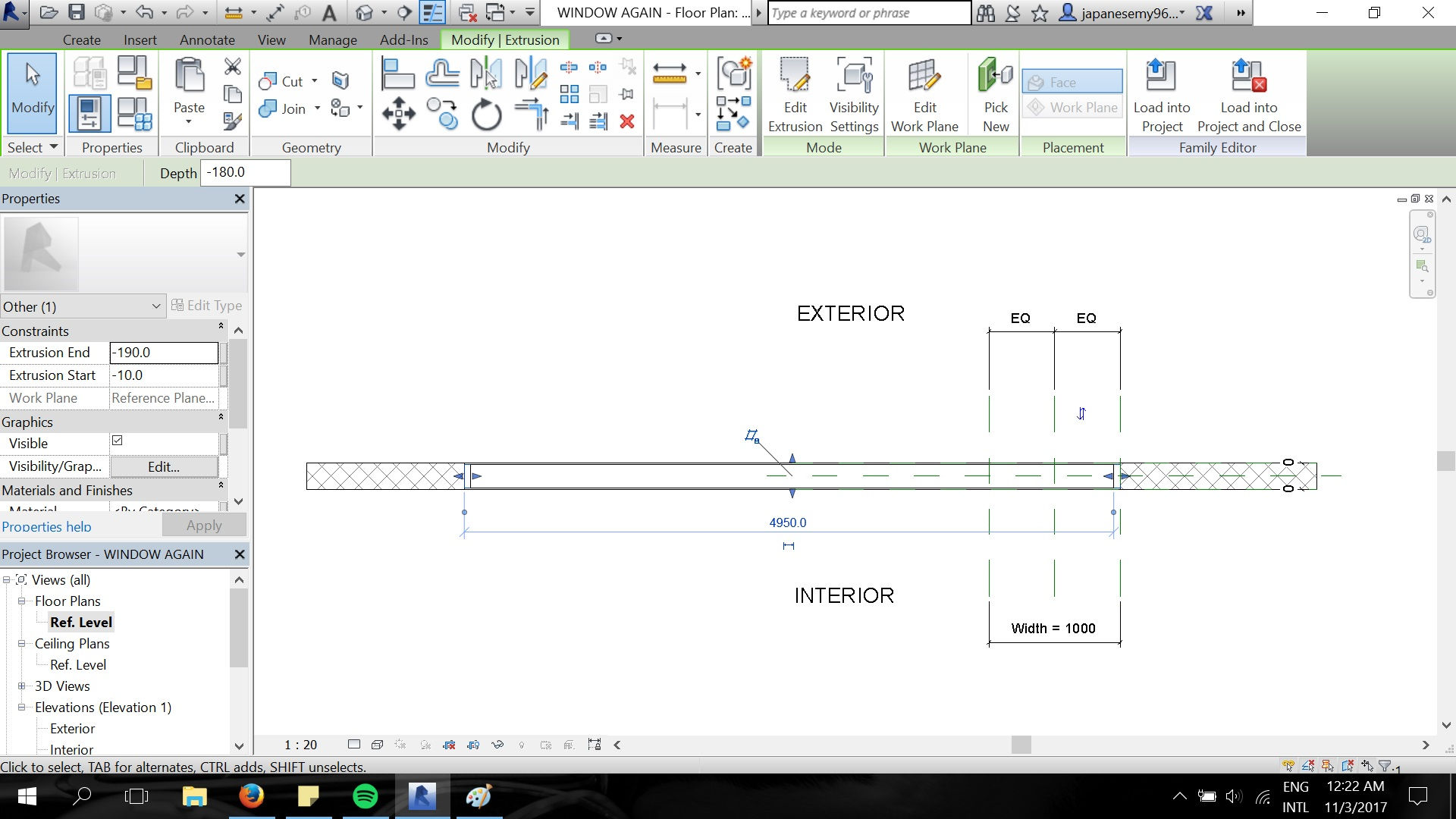

Family b4

Family b5

Model making Progress

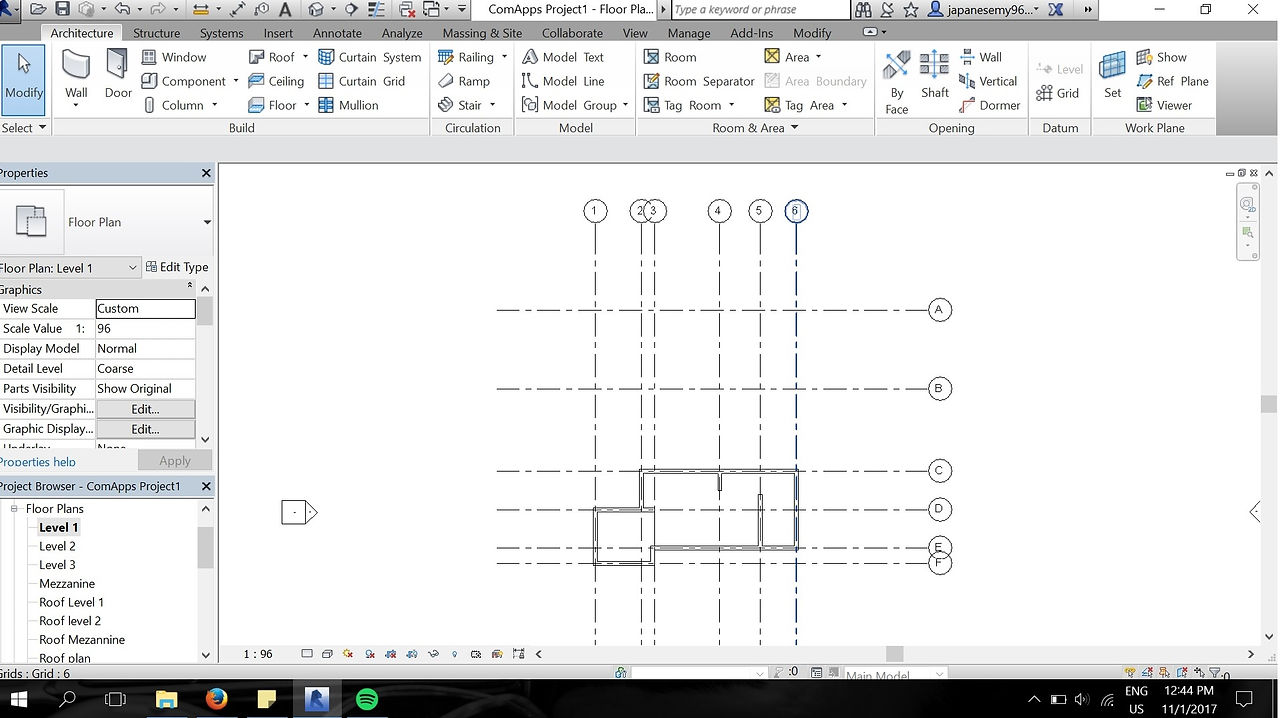

1. Making floor plans with grids

2. Making walls by picking lines

3. Putting columns in with component

4. Making roofs by picking lines

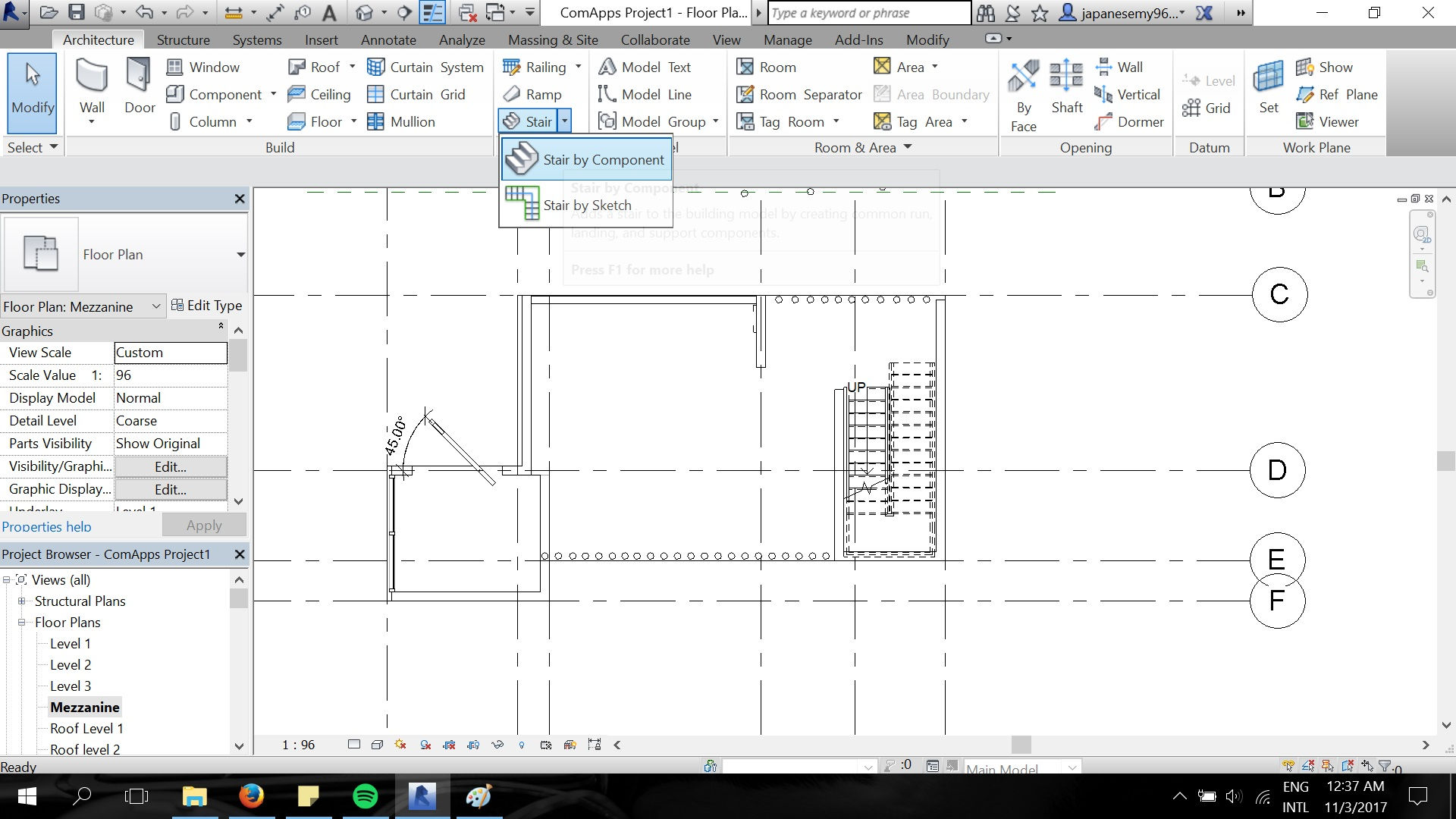

5. Stairs is made using stairs by component tool

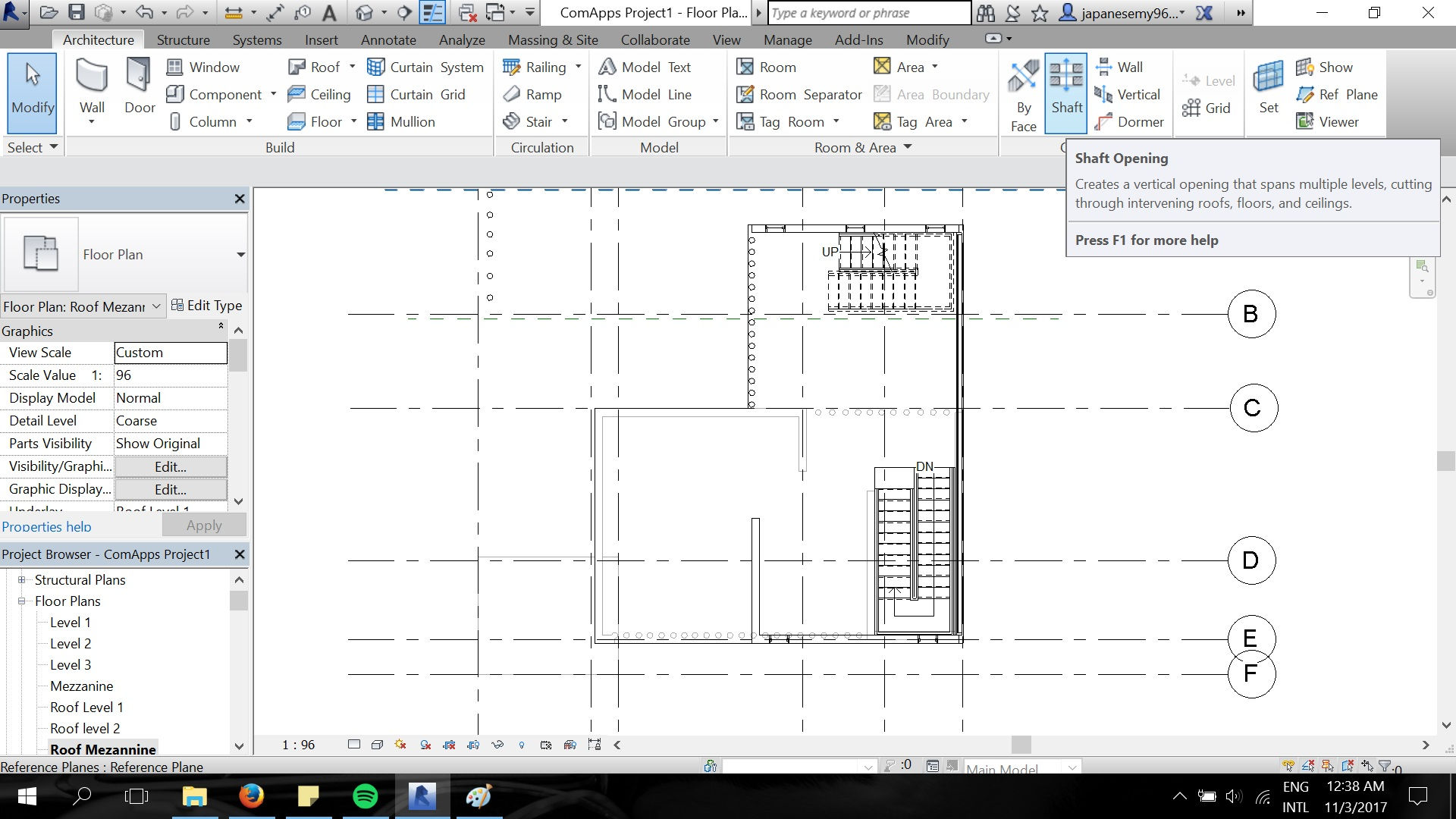

6. Shaft is made on Mezannine Roof for stairs

7. Railings are made around the shaft

8. Pivot swinging door family is loaded and placed at entrance

9. Window family created is then loaded into project and placed at kitchen

10. Railings are made on walkable roof top

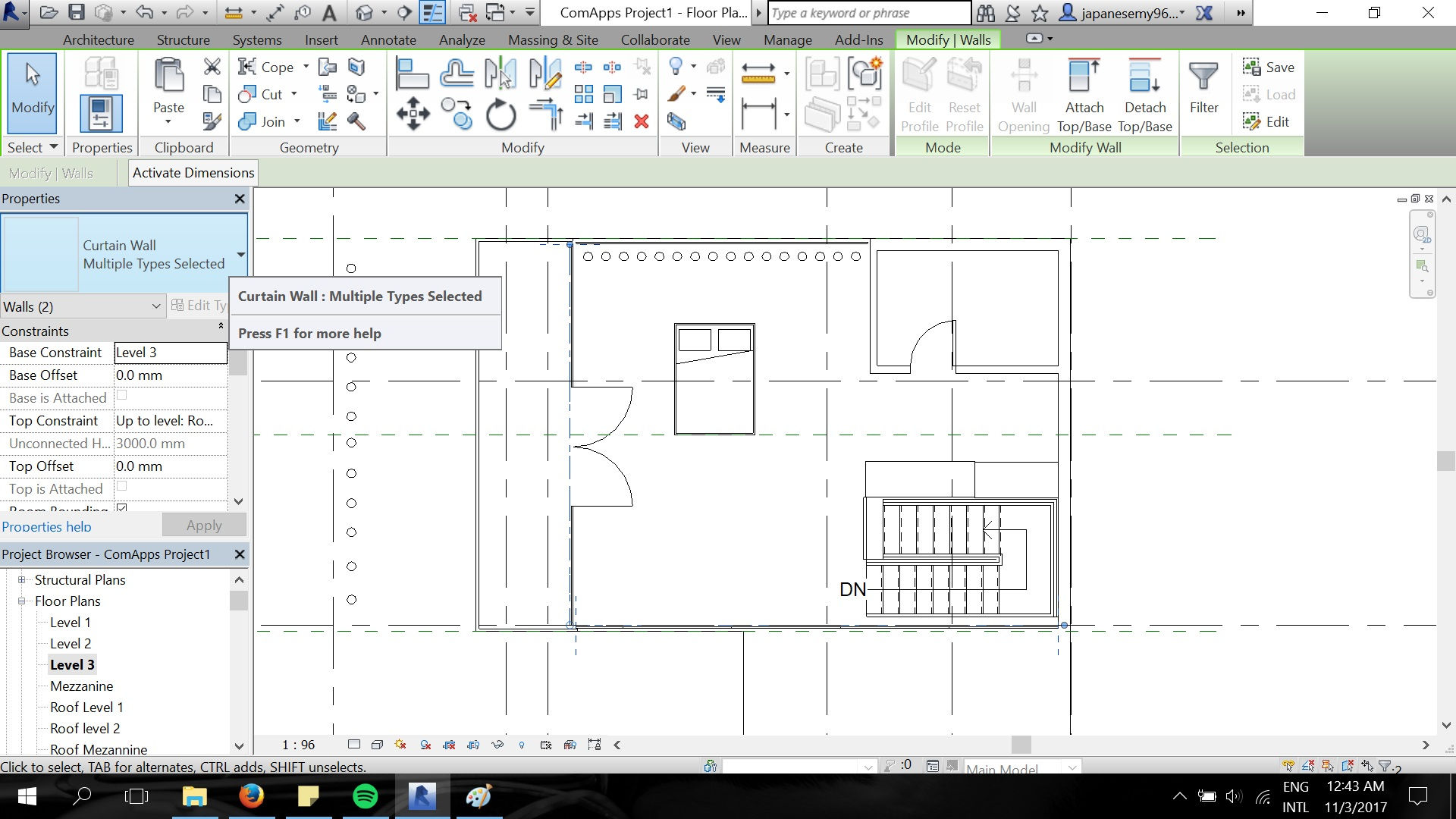

11. Curtain walls are made in bedroom

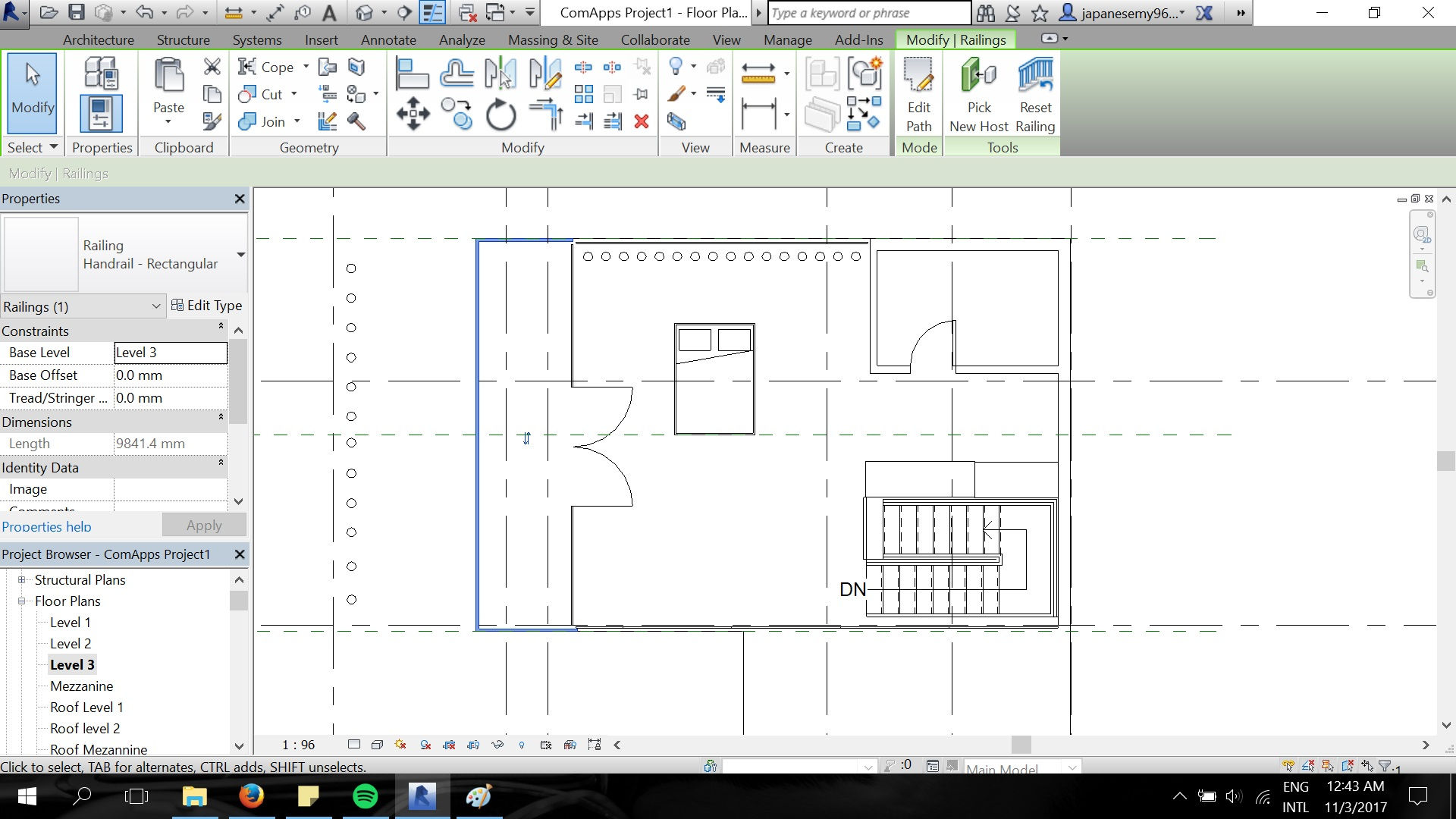

12. Railings are added at balcony

13. Columns are made

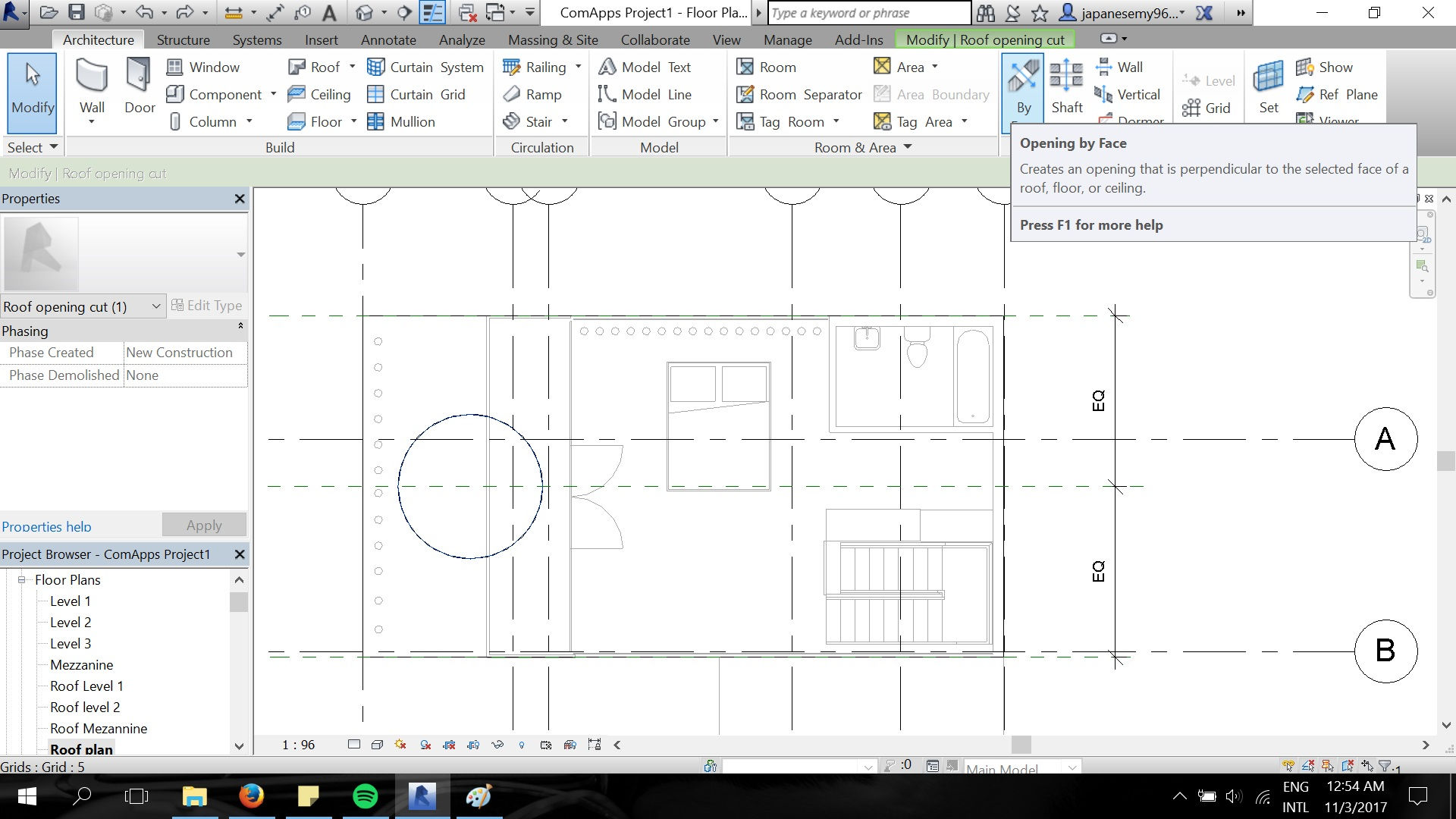

14. Using By Face, an opening is created

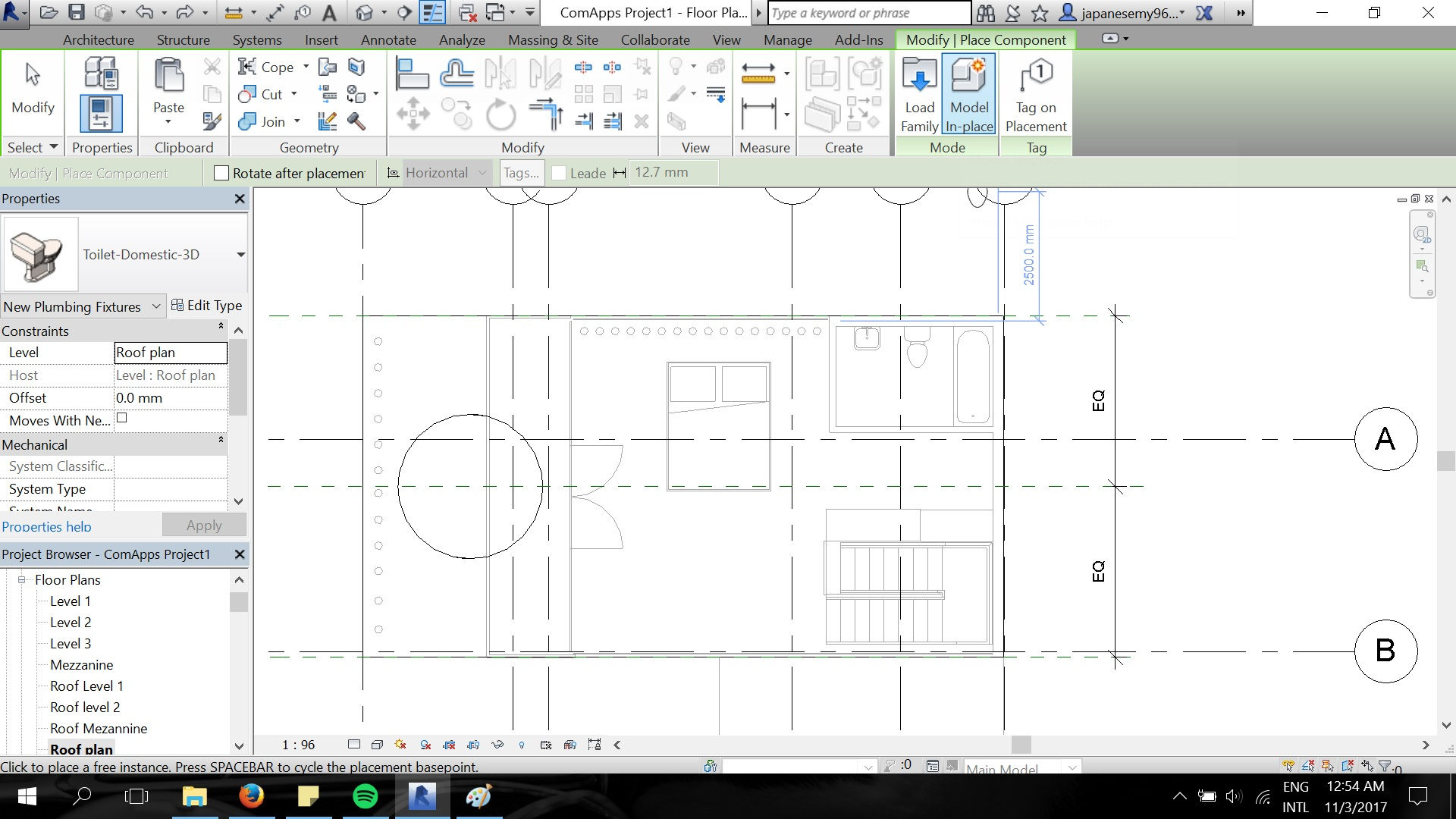

15. Using Model In place, a glass panel is created with extrusion and then the thickness edited in properties tab

16. Columns are added on the exterior

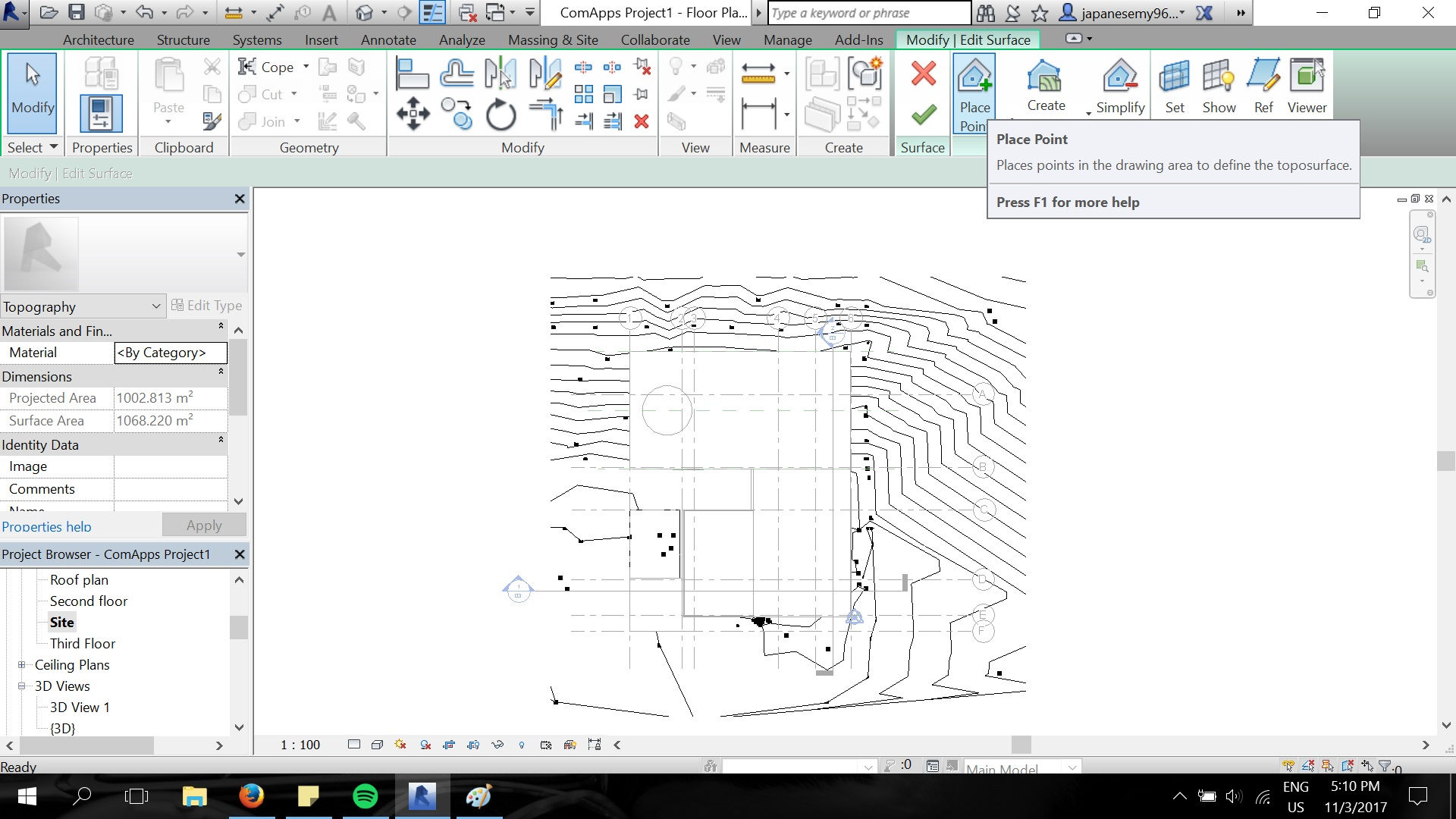

17. Topography is created by placing points

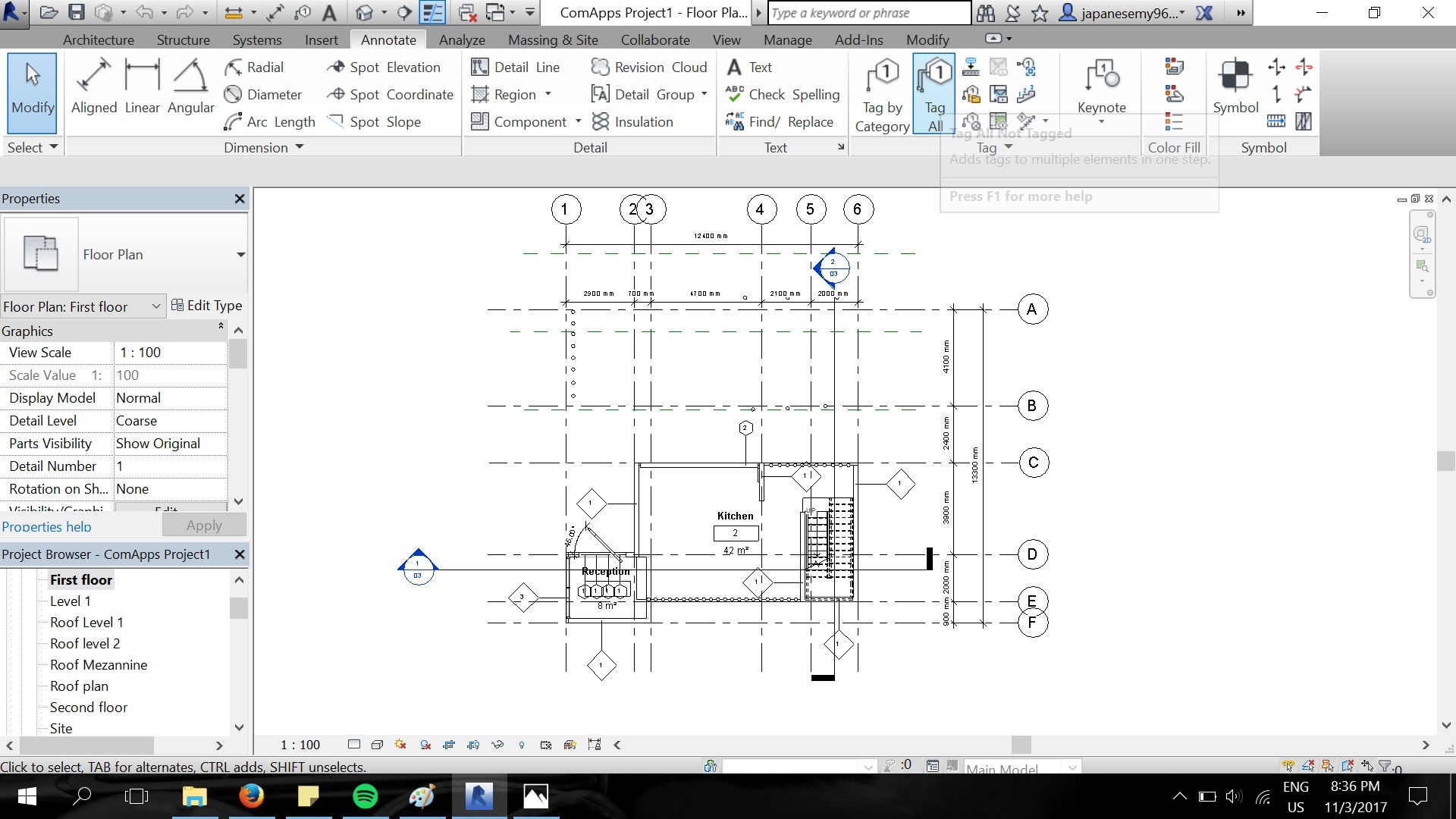

18. Annotations and tags are made to each window, wall, door and room

19. Title block is edited in family and then loaded into project

20. Room schedule is made

21. Stairs schedule is made

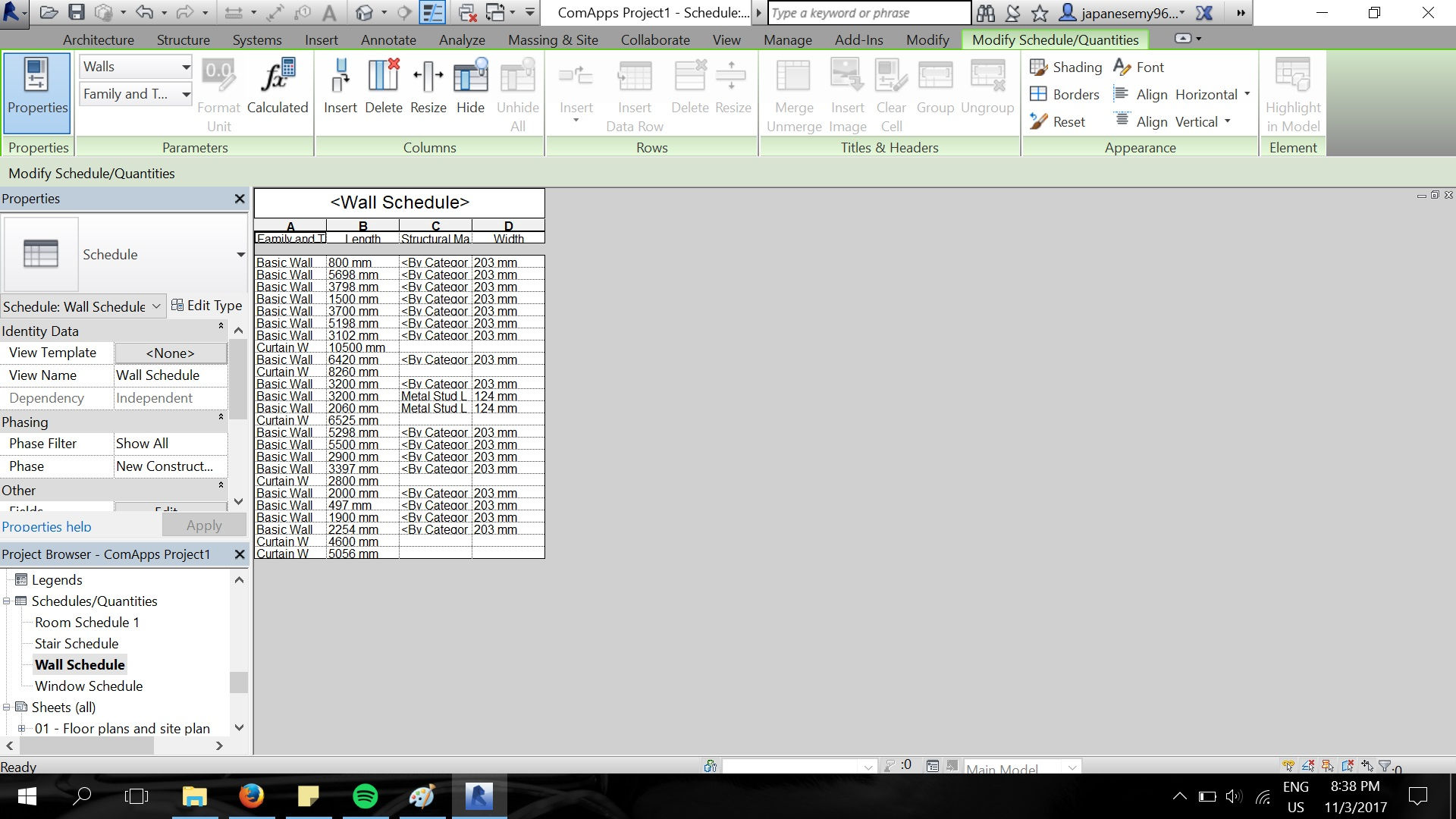

22. Wall schedule is made

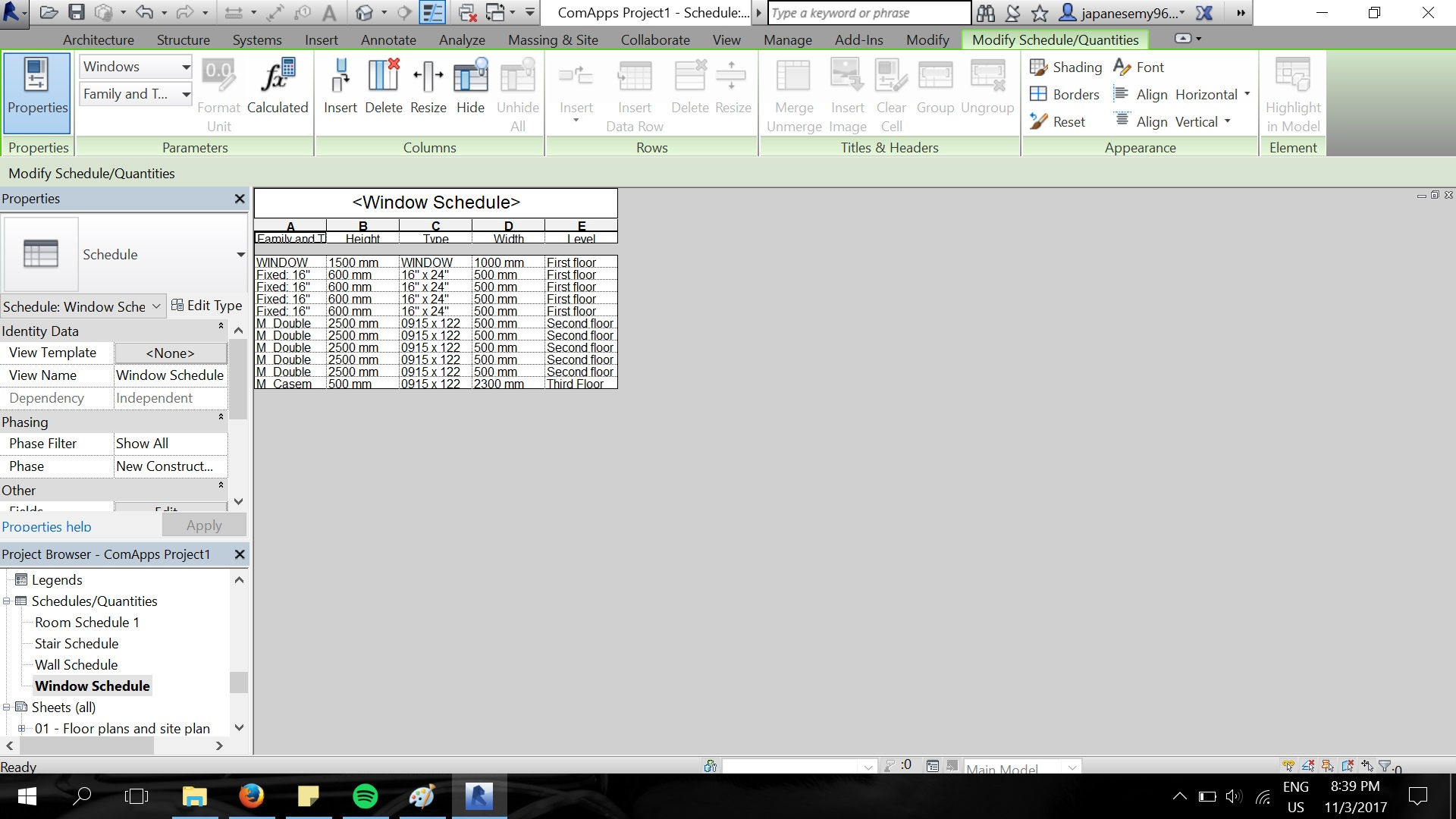

23. Window schedule is made

24. Using displacement method, an axonometric view is made

Link to Revit file and Family files :

https://drive.google.com/open?id=1bHiU2yfxJ3h2dfH473IUbR2o8U4C64CY

---

Project 2 : Exterior and Interior Rendering

Exterior rendering progress :

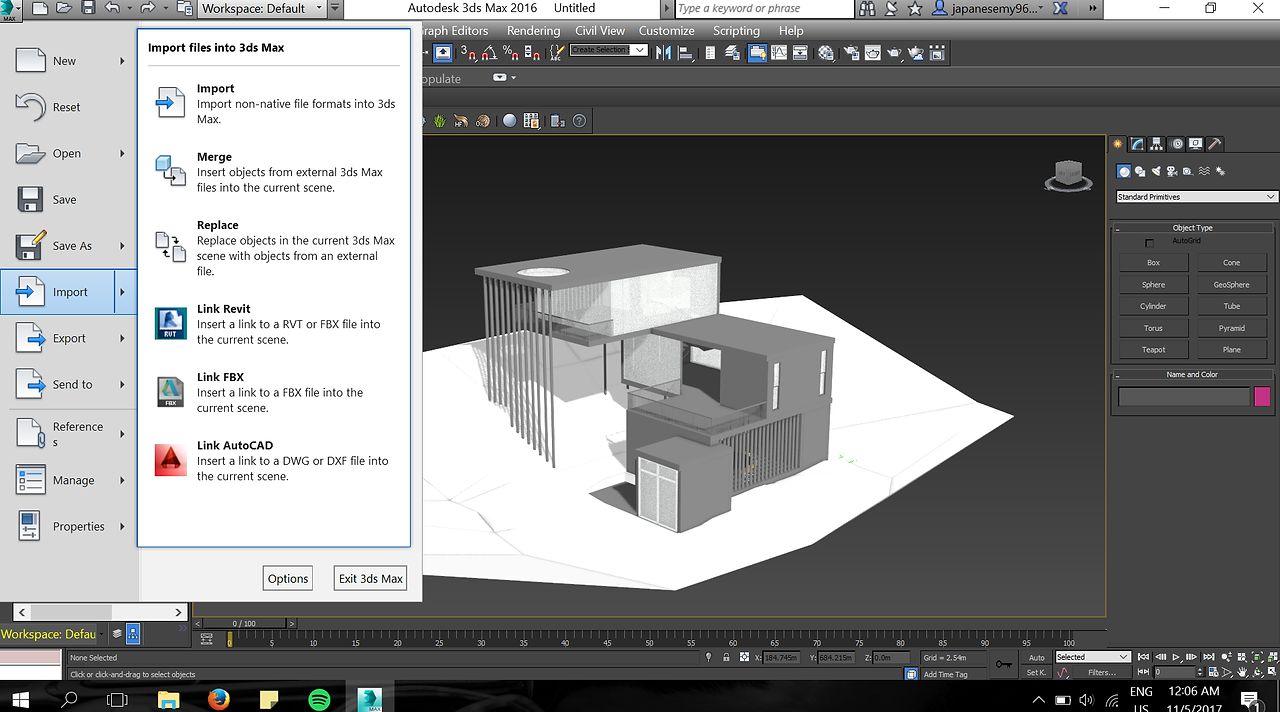

3ds 1. Inserting 3D model from revit to 3Ds Max

3ds 2. Inserting materials into model

3ds 3. Placing furniture using Merge

3ds 4. selecting materials

3ds 5. adding in diffuse maps and editting it etc

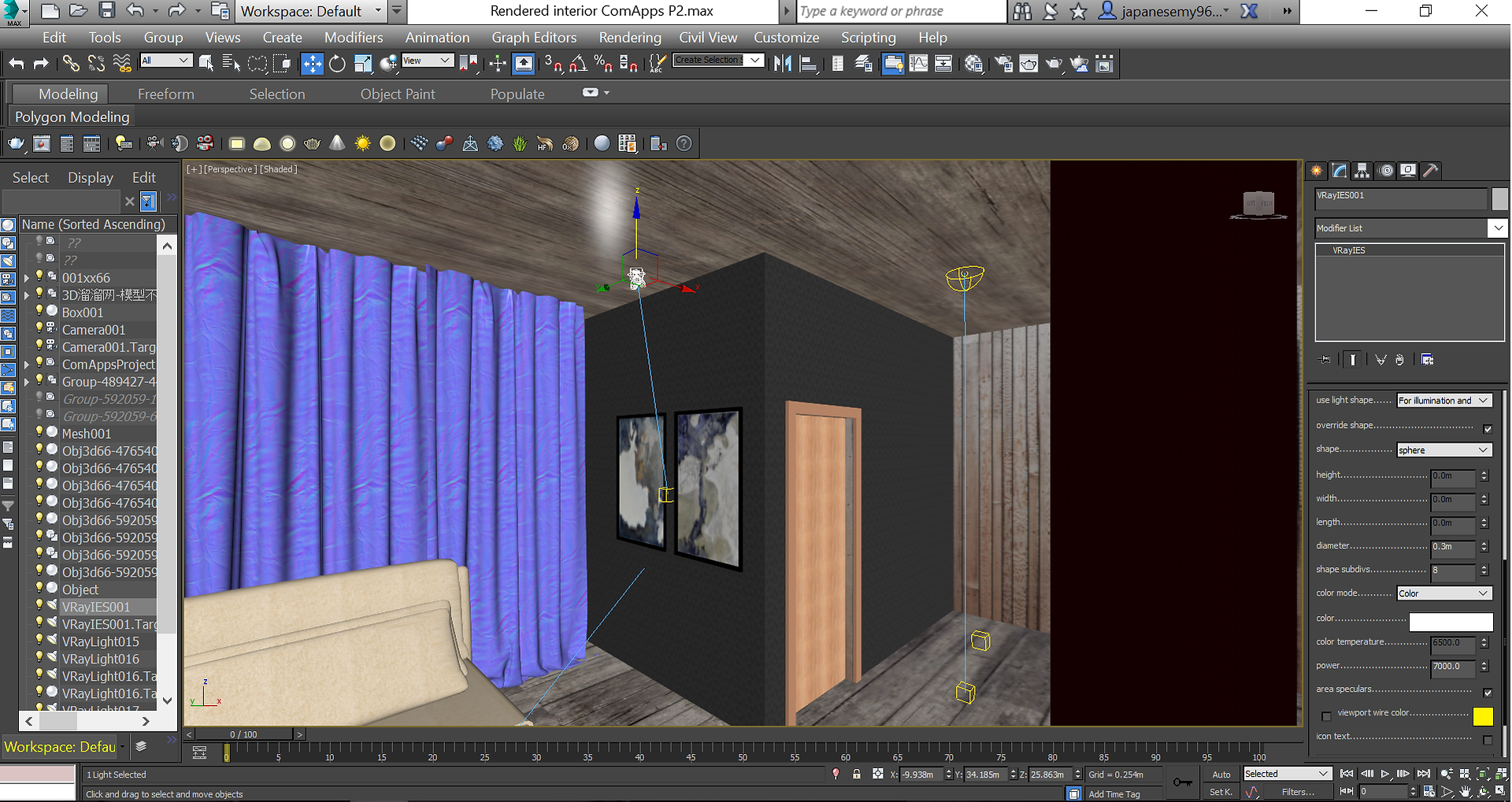

3ds 6. adding in lights using IES and Vray light

3ds 6. test rendering

ps 1. post production in ps

ps 2. adding background

PS 3. adding human png

Final interior rendering :

Exterior rendering progress :

3ds 1. Inserting 3D model from revit to 3Ds Max

3ds 2. Inserting materials into model

3ds 3. Placing furniture using Merge

3ds 4. selecting materials

3ds 5. adding in diffuse maps and editting it etc

ps 1. putting the pictures together

ps 2. cropping the desired elements

ps 3. still cropping and arranging

ps 4. done cropping

ps 5. adjusting hue and saturation to sky, trees and model

Final exterior rendering :
